Model 1601/1602

Model 1601/1602 Barrier Gate Operators

* Advanced microprocessor control board eliminates mechanical relays, limit switches and reversing contractors.
* Automatic limit settings means no limit switch adjustments - ever!
* DoorKing's plug-in loop detectors simplify wiring and make installation easy.
* The model 1601 is designed for high usage applications. The arm will rotate to the up position in approximately 1.5 seconds.

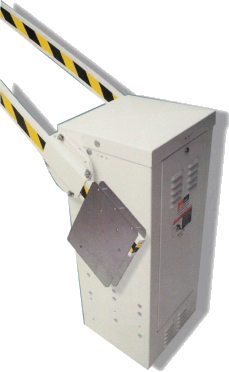

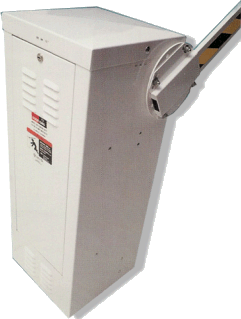

barrier gate operator

Model 1601 / 1602 Barrier Gate Operators

* The model 1602 is designed for low use applications that require a barrier arm to span traffic lanes up to 20 feet wide. The three-piece wishbone style arm will rotate to the up position in approximately 2.5 seconds.
* Gate Tracker reporting. When connected to a companion DoorKing access control system (1803PC, 1815, 1817, 1818), Gate Tracker provides important operator data such as number of gate cycles, operator input status, loop detector faults and more. This is great information for management companies, maintenance personnel and service companies.
* The DC backup system includes a completely independent drive, control and power system that provides a convenient method to raise the barrier arm should a power outage occur. This is a great option for apartment complexes and gated communities that prevents traffic from backing up during power outages because access gates are inoperative.

overhead gate operator

Model 1100 Overhead Gate Operator

* This operator is designed to operate overhead type vehicular gates that on mounted on jamb track or jamb type hardware.
* Heavy duty four-inch rails add strength and rigidity to the unit. #40 roller chain to help lift heavy gates.
* Low profile and quiet operation make it ideal for underground parking gate applications.
* DoorKing's plug-in loop detectors simplify wiring and make installation easy.
* Gate Tracker reporting.



power panel

Microprocessor Control Boards are designed and built at DoorKing's manufacturing facility in Inglewood, CA., assuring a long lasting trouble free system

Gate Tracker Reports gate operator data to a companion DoorKing access control system (1803PC, 1815, 1817, 1818)

gate operators

gear rotation box

Gear Rotation Box DoorKing 1601 and 1602 barrier gate operators are designed so that the gear-box rotates a full 360 before the motor changes direction. This provides for smooth operation, evens wear across the entire gear-box and increases the life span of the operator.

Automatic Sequencing Our unique sequencing inputs automatically sequence the barrier gate with a slide or swing gate operator. This feature is typically used for better traffic control in high security applications, gated communities and apartment complexes.

automatic sequencing
