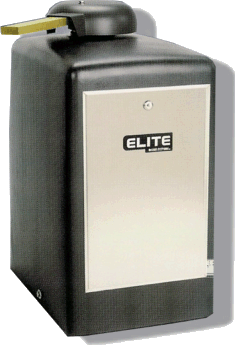

RoboSwing - Swing Gate Operator

Roboswing Elite

Elite Access Sytems, Inc. presents the RoboSwing R900, the light duty commercial gate operator, specifically designed for limited commercial applications, single family houses, residential complexes of 15 units, or ranches. Engineered to handle a maximum of 250 cycles per day with a plug-in transformer on a gate up to 400 lbs. and 16 feet in length, this unique gate operator can be used as a wireless unit through a solar powered system. RoboSwing uses only a 12 volt, 7 amp hour battery that can be charged either through the solar panel, or plug in transformer. This super quiet operator functions with a continuous cycle DC motor and dual gear reducers. Equipped with an automatic closing timer, two-way reversing sensor and electronic shut-off system (electric clutch system), RoboSwing R900 is capable of accepting a safety loop system. The no power failure function is the most unique feature of this operator, making the RoboSwing R900 one of the most advanced gate operators in the world today.

Release
The gate can be easily disconnected by turning the release handle. To operate the gate manually, pull release handle 180°, then push gate open.

gate release elite

Motor
Permanent magnetic 12-volt DC motor.

motor

Control Board Modular control board uses LED's to indicate all input and output functions of the operator

control board

Features:

Gear Box: Equipped with two gear reducers that are lubricated in an oil bath

Chassis: Constructed with 1/4" metal that is welded and gold zinc plated.
Solar Panel: The optional Solar-3 solar panel allows the RoboSwing R900 to operate as a wireless system.

Cover: Heavy duty polyethylene plastic cover and stainless steel access door.

Timer: Can be set from 0 - 60 seconds

Sensor:  Can be set for closing and opening cycles. If the gate hits a vehicle while closing, the operator reverses. If it hits a vehicle while opening, it stops, reverses several inches and stops again.

Alarm: The Alarm will sound anytime the gate is stopped by a vehicle.

For more information, contact Rob Evans or visit www.eliteaccess.com
