Doorking Logo

Slide Gate Operators

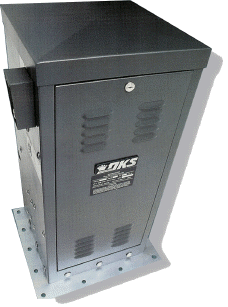

Model 9200

High Security / Industrial Model 9200

This operator is designed for very large and heavy gates in limited and restricted access applications only and is not designed for applications serving the general public such as, gated communities, apartment houses, residential applications, public parking areas or garages.
* Adjustable partial open limit setting
* Inherent reverse system monitors both motor current and output shaft speed (RPM's) for better reliability.
* Includes the advanced features as described under the 9100 / 9150 models.
* This is a high security operator that is designed for fail-safe operation. When a power outage occurs, the gait will remain locked and cannot be manually forced open.
* Manual operation is by means of an inter-locked (motor cannot start when crank is inserted) manual hand crank that uses the operator drive system for easy operation of large heavy gates.

Model 9100/9150

Multi-User / Commercial Model 9100 / 9150

The 9100 / 9150 include all of the features found in the 9050 / 9070 plus these advanced features.
* Anti-tailgating loop feature helps prevent unauthorized vehicles from entering a parking area.
* Partial open feature is especially useful on long gates. This feature allows a long gate to open just 14 feet for normal vehicular traffic, but allow the gate to open fully when needed by oversized vehicles such as large trucks, vans or fire engines. This reduces the wear and tear on the operator, prolonging its life cycle.
* Gate Tracker reporting. When connected to a companion DoorKing access control system (1803PC, 1815, 1817, 1818), Gate Tracker provides important operator data such as the number of gate cycles, operator input status, if any attempt has been made to force the gate open, if the gate has hit any obstructions, loop detector faults, and more. This is great information for management companies, maintenance personnel and service companies.
* The DC backup system (optional on 9150 only) includes a completely independent drive, control and power system that provides a convenient method to open your access gate should a power outage occur. This is a great option for apartment complexes and gated communities that prevents traffic from backing up during power outages because the access points are inoperative.

Model 9050/9070

Single Family / Residential Model 9050 / 9070

Advanced microprocessor control board eliminates mechanical relays, limit switches and reversing contactors.
* Automatic limit settings means no limit switch adjustments - ever
* DoorKing's plug-in loop detectors simplify wiring and make installation easy
* The two-stage electronic and mechanical self-checking inherent reverse system makes these operators the safest on the market.
* Patented fail-safe release system locks the gate if an attempt is made to force it open, but allows the gate to be simply pushed open during power outages with the need of any cranks, keys or other release devices (which more often than not cannot be located when needed.) This is a must have feature for safety and quick emergency access, and is required by fire departments in many parts of the country.

gear wheel

power panel

Microprocessor Control Boards are designed and built at DoorKing's manufacturing facility in Inglewood, CA., assuring a long lasting trouble free system

Self Adjusting Maintenance free electronic magnetic limits simplify installation and eliminate mechanical switch adjustments. (note: 9200 uses limit switches.)

Partial Open Features allows long gates to open 14 feet for automobile traffic, or opens gate fully for large trucks or oversized vans. (Note: Not available on 9050, 9070)

slide gate


Anti-Tailgating Helps prevent unauthorized vehicles from entering through the access gate and enhances security. (Note: Not available on 9050, 9070)

Fail-Safe Operation assures that gates can be opened in the event of a power outage or emergency, without the use of cranks, keys or other release mechanisms. (Note: The 9200 is fail-secure and uses mechanical operation to open the gate.)

fail safe photo

safe gate

Twice as Safe DoorKing operators are designed with a two stage, self-monitoring state of the art inherent entrapment protection system that is second to none in the industry. Fail-Safe Entrapment protection allows the operator to release pressure and assumes a fail-safe condition if an entrapment is sensed. The entrapment can then be immediately removed. No cranks, keys or disconnects to operate. (9200 remains fail safe)
