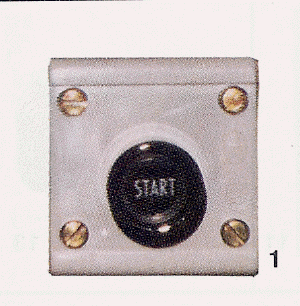

# EOD-1
Single button control station

(Start)
In EEMAC Type 1 or enclosure

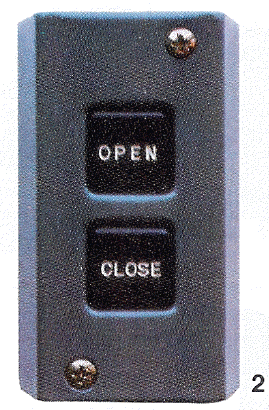

# EOD-2
Two button control station

(Open/Close)
In EEMAC Type 1 Enclosure

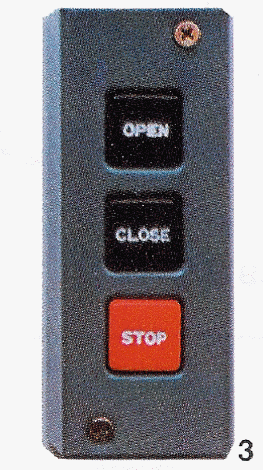

EOD-3
Three button control station

(Open/Close/Stop)
In EEMAC Type 1 enclosure Standard equipment with all operators except MAPT, MTH-APT, MTBH-APT, EEMAC type 4 and 12, and explosion proof operators

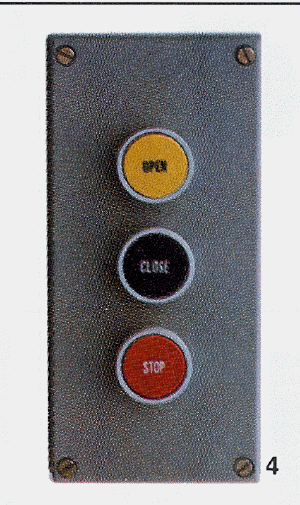

EOD-4
Exterior weatherproof pushbutton station

(Open/Close/Stop)
Suitable for interior and exterior applications.
Standard equipment with all EEMAC type 4 and 12 operators.

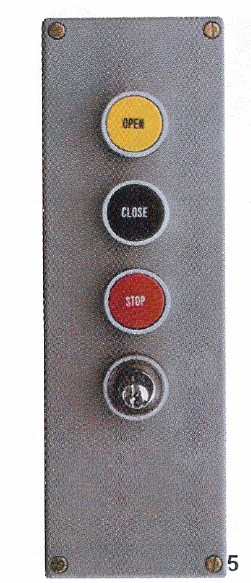

EOD-5
Weatherproof pushbutton station

(Open/Close/Stop)
EEMAC Type 4 with key lock-out When key is turned to lock position, pushbuttons are rendered inoperative. Interior and exterior operation.

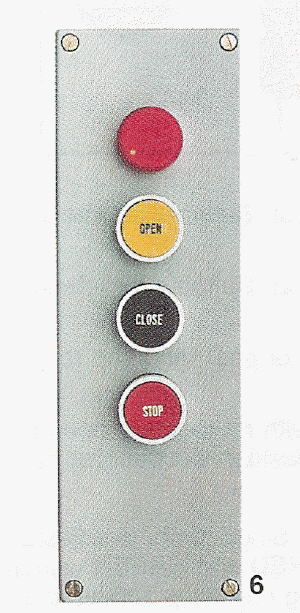

EOD-6
Weatherproof Pushbutton station

(Open/Close/Stop)
EEMAC Type 4 with pilot light Suitable for interior and exterior operation.

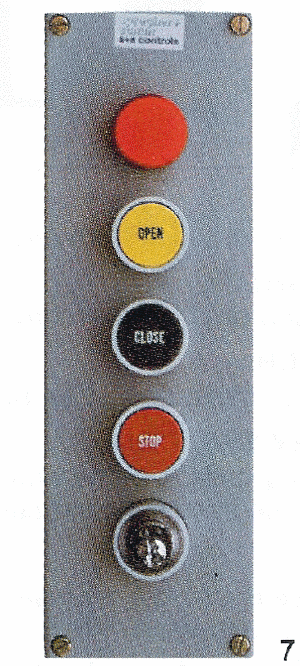

EOD-7
Weatherproof pushbutton station

(Open/Close/Stop)
EEMAC Type 4 with key lock-out and pilot light suitable for interior and exterior applications.

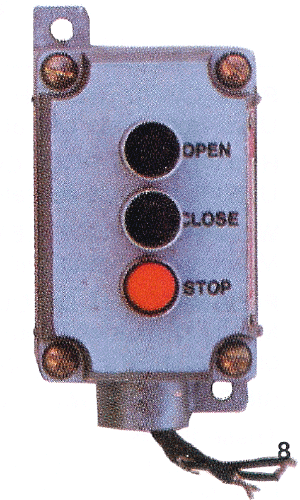

EOD-8
Explosion-Proof pushbutton station

(Open/Close/Stop)
EEMAC Type 7 & 9 Standard equipment with all EEMAC type 7 and 9 explosion proof operators.

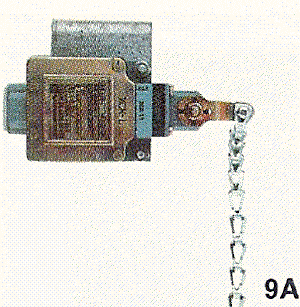

EOD-9A
Pull cord switch

Used to activate operator to open or close from drivers seat. Suitable for interior and exterior use.

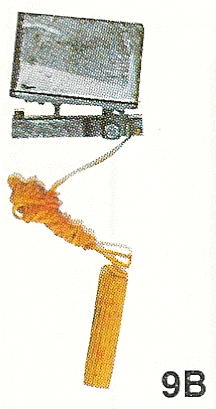

EOD-9B
Heavy Duty Pull Cord Switch

Used to activate operator to open or close from drivers seat. Suitable for interior and exterior applications.

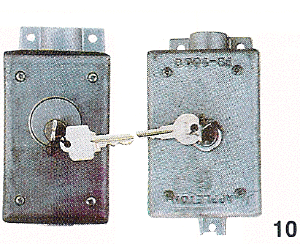

EOD-10
Weatherproof Key Switch

Momentary contact will open and close door. Can be wall or post mounted for interior and exterior use.

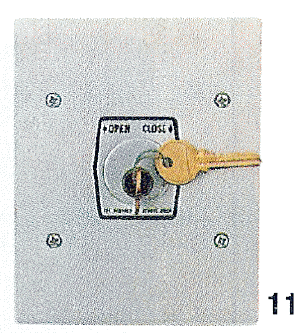

EOD-11
Flush mount OP-CL-ST key switch

Mostly for use with interior rolling grilles. Can be ordered with momentary open (full cycle) or close (full cycle) wiring, or constant pressure open + close in which the center position will become "STOP."

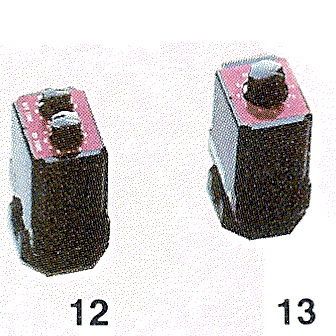

EOD-12 and 13
Single and Dual Timers

These timers automatically close the door after a preset time. Single timer is adjustable from 0.5 to 90 seconds. The Dual model is adjustable from 0.5 to 180 seconds and can be wired to control RED and GREEN warn signal lights to desired functions. Both timers will reset to 0.5 seconds each time an opening control is activated during timer cycle.

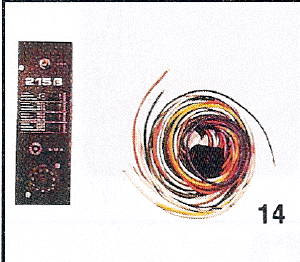

EOD-14
Magnetic Vehicle Loop Detectors
(Sarasota 215 B)

These are completely transistorized electronic units with dual function and a continuous automatic self-tuning feature. They are used for detecting the presence or passage of a vehicle over wire loops embedded in the roadway surface. When a vehicle passes over the loop, the unit will open the door. If during downward travel of the door, a vehicle passes over the loop, the door will reverse to the open position. Dual function permits two loops to be used. When the exterior loop is not required (overnight) one can turn the switch so that only the interior loop functions.

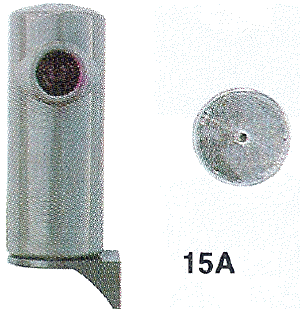

EOD-15A
Photo-Electric Controls
(Photoswitch - 42 RLU 4000)

These can be used as opening and reversing devices. An infra-red light is emitted from the control to a reflector and back. When this beam is broken, the door will open. If during downward travel of the door a vehicle breaks the beam, the door will reverse to the fully open position.

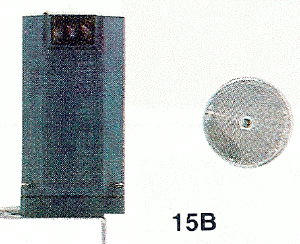

EOD-15B
Photo-Electric Controls (OPCON)

These can be used as opening and reversing devices. An infra-red light is emitted from the control to a reflector and back. When this beam is broken, the door will open. If during the downward travel of the door the beam is broken, the door will reverse to the fully open position.

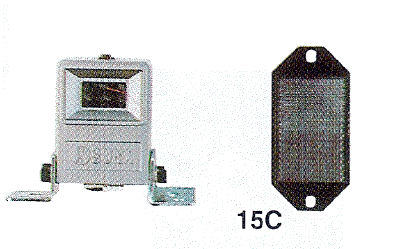

EOD-15C
Photo-Electric Controls (SUNX)

These can be used as opening and reversing devices. An infra-red light is emitted from the control to a reflector and back. When this beam is broken, the door will open. If during the downward travel of the door the beam is broken, the door will reverse to the fully open position.

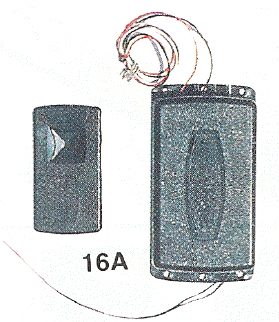

EOD-16A
Radio Controls

Used to open and close door from a distance (i.e. your car) Available with one or more transmitters.

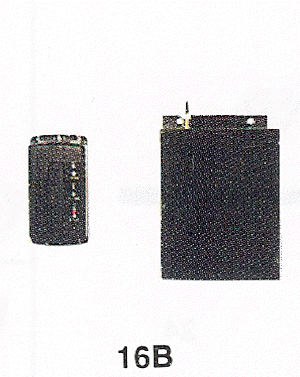

EOD-16B
Commercial Radio Control

Used to open, close and stop door from a distance. Available with one or more transmitters.

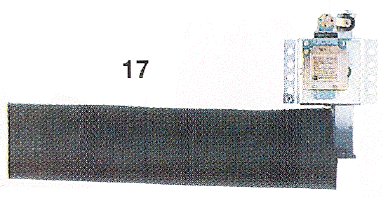

EOD-17
Electro-mechanical Safety Edge

Installed on the bottom section of door. When it encounters an obstruction, the reversing switch is activated and the door reverses to a fully open position or can be wired to stop.

EOD-18
Electro-Pneumatic Instant Reverse or Stop System

When door, during downward travel, encounters and obstruction, the air switch is triggered, and electrical signal is sent the the operator via a coil cord and the door can be reversed or stopped. Includes an aluminum retainer, neoprene tubular weather strip, air hose, air switch and coil cord.

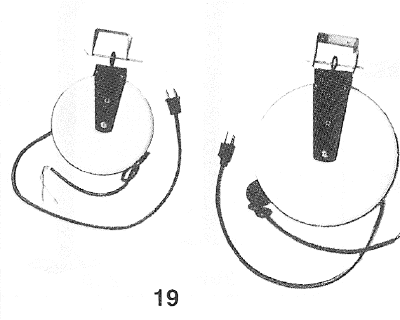

EOD-19
Reelites

Offered as an option to coil cord, it keeps the cord out of the way to prevent damage. Shown are (A) 2 conductor reelite with 20' cord and (B) 3 conductor reelite with 30' cord.

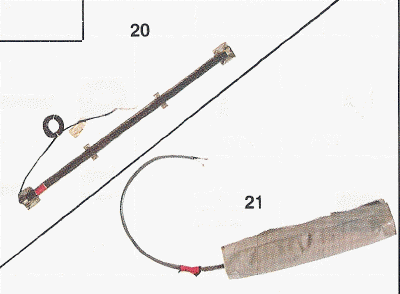

EOD-20
Surface Mounted Treadle

This opening and reversing device of durable construction is floor mounted and used in garages with excessive vehicular traffic (where hose would tear). It is activated when a vehicle drives over it.

EOD-21
Miller Safety Edge

Ultra-sensitive electro-mechanical safety edge. For use on doors in location where security is a priority. It is composed of 2 aluminum strips enclosed in a foam rubber housing, covered by vinyl and electronically heat seated at all seams. It is available in U shape for standard doors and T shape for rolling steel doors.

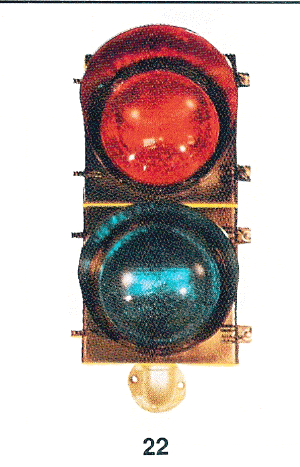

EOD-22
Traffic Lights

Available as a dual (red and green) set or a single (red or green). Lights are enclosed in a weatherproof housing and have eight inch diameter lenses. Galvanized mounting brackets are included. Standard operation: Red light on when door is moving up and down, green light on when open, both lights off when closed. Flashing signal is optional. Required voltage is 110 VAC. Available at an extra charge on 240 1PH and all 3 phase operators.

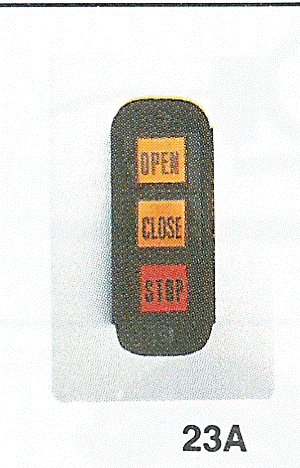

EOD-23A
Flush Mount

Push button station for interior use only.

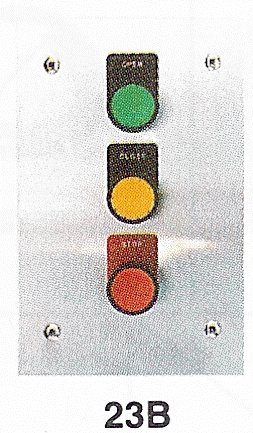

EOD-23B
Heavy-Duty Flush Mount PBS

Push button station for interior use only.

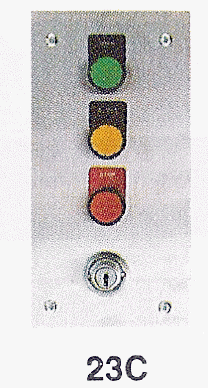

EOD-23C
Heavy-Duty Flush Mont PBS with Key Switch

Push button station for interior use only.

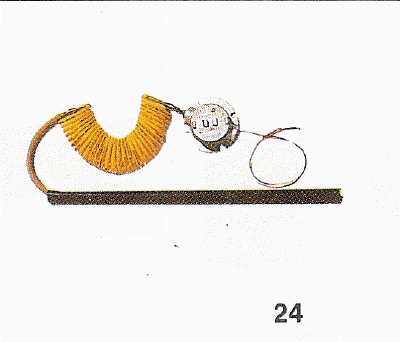

EOD-24
Explosion Proof Electro Pneumatic Instant
Reverse/Stop Switch

When door, during downward travel encounters and obstruction, the explosion proof are switch is sent a signal via the retractable air coil, and signals the operator to stop or reverse. (Instant reverse available on three phase operators only).

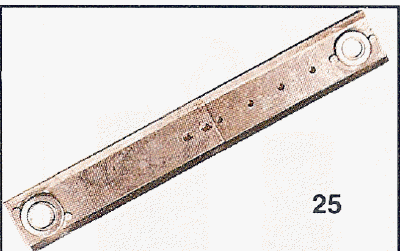

EOD-25
Chain Spreader

For use on jackshaft type operators. It is designed to be installed between the operator drive shaft and the door shaft to keep the drive chain tight.

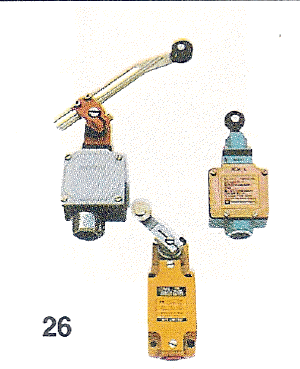

EOD-26
Utility Switch

A multipurpose and heavy duty switch. For use as a track limit, side lock cut out switch, control switch, etc.

EOD-27A
1.5 Second Time Delay Relay

Used in conjunction with instant reverse wiring. Prevents harsh jolting of door and cables during reverse cycle.

EOD-27B
1 Amp Preset

Used in Lieu of fuse. Installed with reset button protruding from control box which allows customer to reset unit themselves. Eliminates problems caused by blown fuses due to short during hook-up.

EOD-27C
Hammond Transformers

Higher V.A. rating for use when additional auxiliary equipment is being powered by operators secondary voltage.

EOD-27D
Heavy Duty Reversing Contactor

Heavy duty construction c/w contacts rated for higher amperage, gives longer life to this unit.

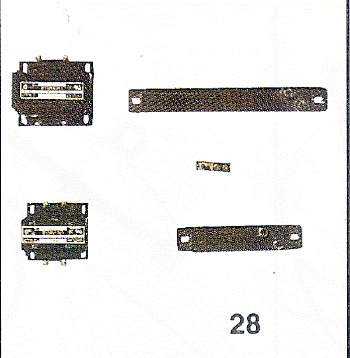

EOD-28
Heated Package

Consists if heater strip (150 Watt standard, 250 W or 500 W optional at extra cost)

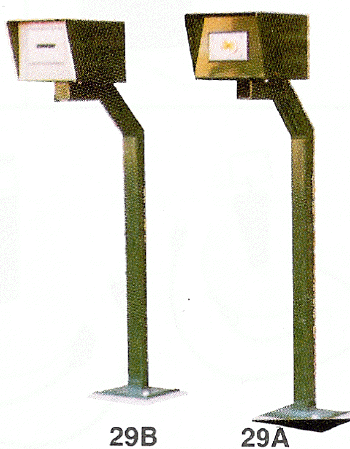

EOD-29A and 29B
Key Post Stand

Heavy duty stand can be used to house key switch (A) or card reader (B).
