ETL Approved
Two Fully Adjustable ERD's
|
|||||||||||||||||||
| Motor | 1/2 hp - 115 V - 3 Wire Installation |
| Gear Box | 10:1 Single Reduction |
| Control Board | Solid State Board |
| Cover | Rotational Molded, Indestructible |
| Dimensions | W=12" L = 17" H=23 1/2" |
| Gate Length | Up to 35 feet |
| Gate Weight | Up to 1000 lbs |
| Gate Speed | 12 inches per second |

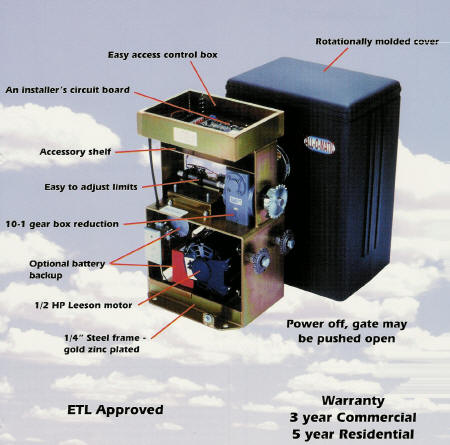

Model SL-100
ETL Approved
Two Fully Adjustable ERD's
Full three year warranty on commercial, five years on residential
0 - 60 second timer
One Pass (Anti-Tailgate) Standard
Master and Slave Standard
All normal safety inputs standard
Bright LED's for trouble shooting
OSC - Partial Open
Lock - Solenoid & Mag
Brake - Uphill and Downhill Usage
| Motor | 1/2 hp - 115 V - 3 Wire Instant Reverse |
| Gear Box | 60:1 Single Reduction |
| Control Board | Solid State Board |
| Cover | Rotational Molded, Indestructible |
| Dimensions | W=12" L = 17" H=25 1/2" |
| Gate Length | Up to 18 feet |
| Gate Speed | 12 inches per second for 90 degree opening |
| Operator Weight | 110 lbs |

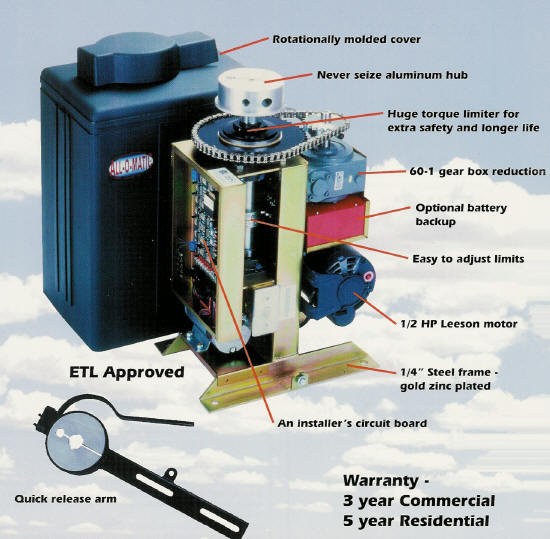

Model SW-300
ETL Approved
3 Year Warranty
Easy to Adjust Limits
Optional Battery Backup
12 Gauge Frame
Rotationally Molded Cover
| Motor | 1/2 hp - 115 V - 3 Wire Instant Reverse |
| Gear Box | 60:1 Single Reduction |
| Control Board | Solid State Board |
| Cover | Plastic Rotational Molded |
| Dimensions | W=13" L = 144" H=8" |
| Gate Length | Up to 16 feet |
| Gate Weight | 800 lbs. |
| Total Weight | 90 lbs |
| Timer | Fully Adjustable |

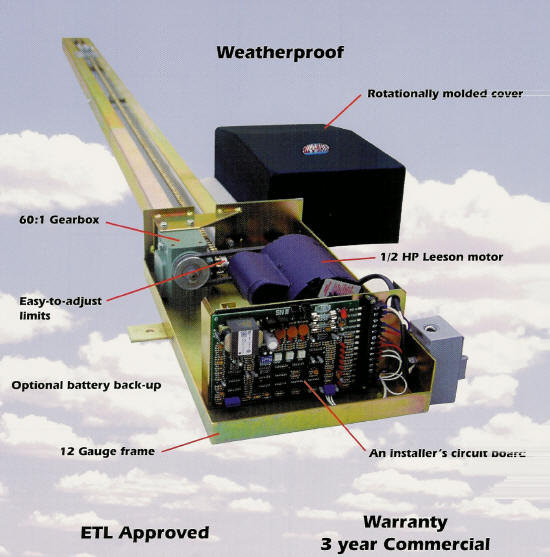

Model OH-200 Overhead
